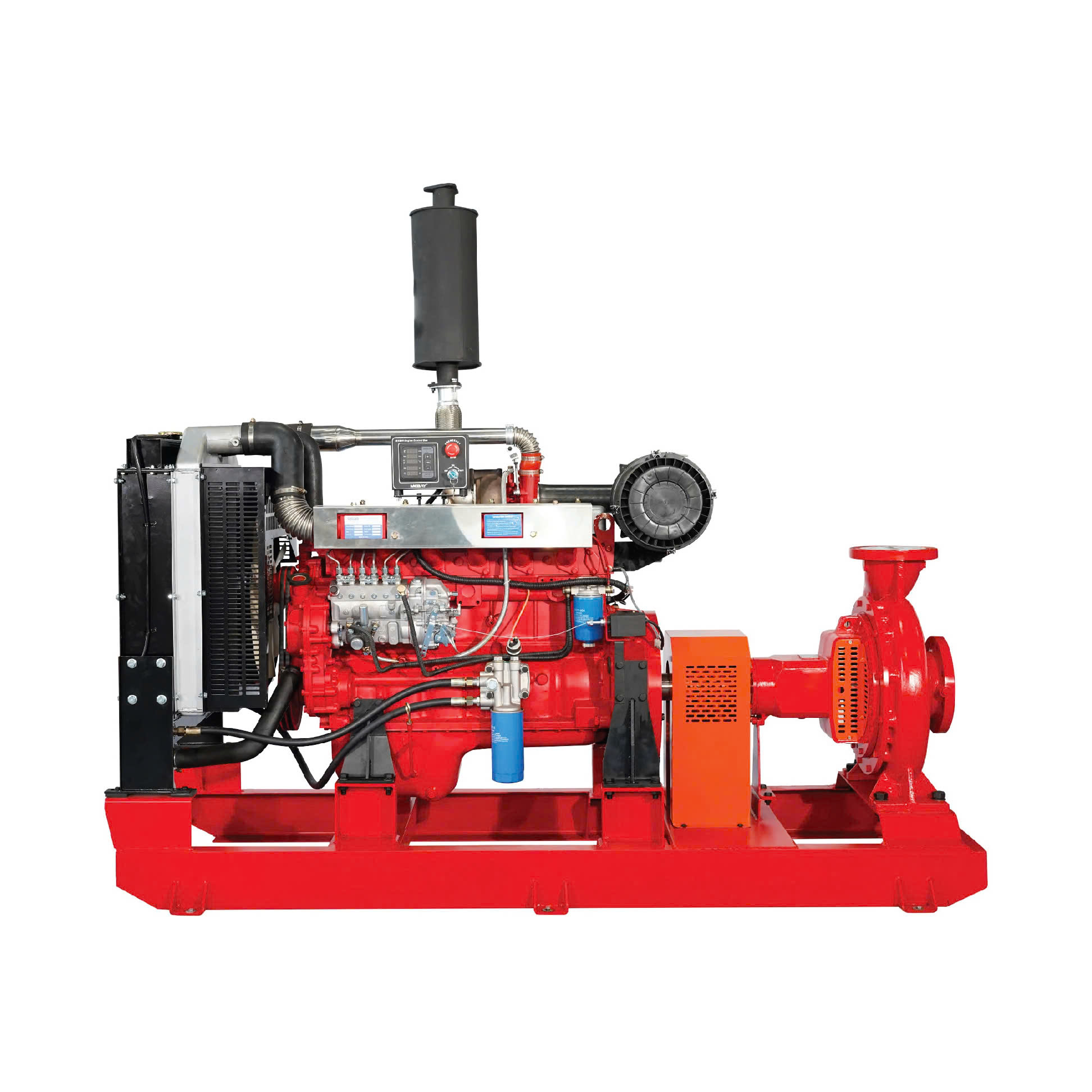

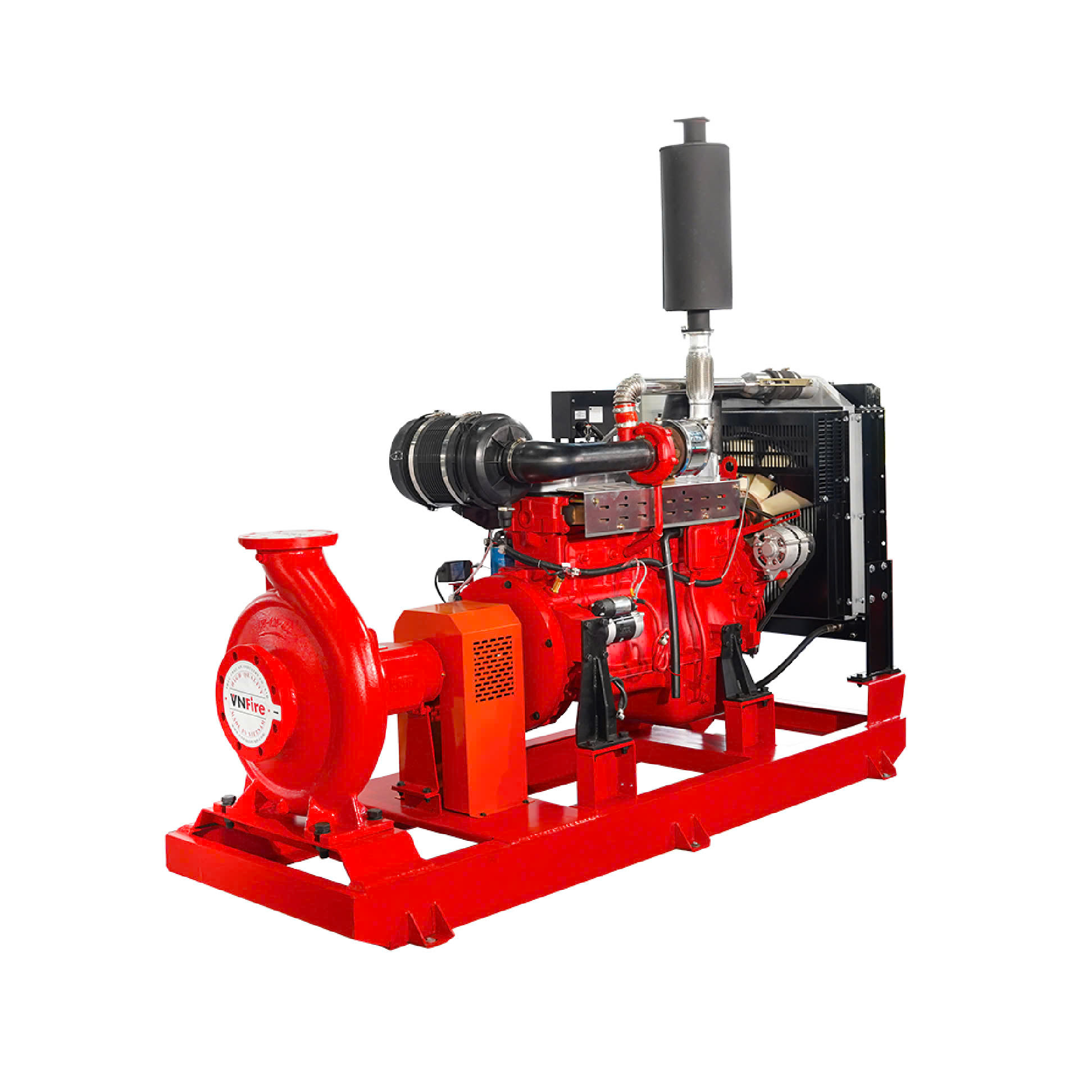

The VN series is EN733 standardised single-stage cast iron centrifugal pump and electric pump / diesel pump which combines the best technical and performance features in a single solution. The wide range (from DN 40 up to DN 300), the variety of materials available, the easy maintenance and the hydraulic efficiency, are further enhanced by the interaction with the electronic solutions also offered by PHUC CHAU AN Company. The VN series are available in both bare shaft and electric pump / diesel driven versions.
The VN series is EN733 standardised single-stage cast iron centrifugal pump and electric pump / diesel pump which combines the best technical and performance features in a single solution.
The wide range (from DN 40 up to DN 300), the variety of materials available, the easy maintenance and the hydraulic efficiency, are further enhanced by the interaction with the electronic solutions also offered by PHUC CHAU AN Company.
The VN series are available in both bare shaft and electric pump / diesel driven versions.
| Technical data | Material | ||
| Flow rate | : Up to 1500 m³/h | Pump casing | : GG25 / GJS500-7 |
| Total head | : 150 m | Impeller | : GG25 / SS304 / Bronze |
| Max working pressure | : 16 bar | Shaft | : Stainless steel 420 (EN 1.4021) |
| Max. temperature of the liquid | : -10°C ÷ 120°C for standard version 0°C ÷ 75°C for optional version | Mechanical Seal | : Silicon carbide/Carbon/EPDM (std) : Silicon carbide/Carbon/FPM (opt) |
| MEI | : > 0.4 / 0.7 | Bearing housing | GG25 / GJS500-7 |
| Poles | : 2 and 4 | ||
| Insulation class | : F | ||
| Protection degree | : IP55 | ||
| Voltage | : Three-phase 3~400/690V ±10% |
