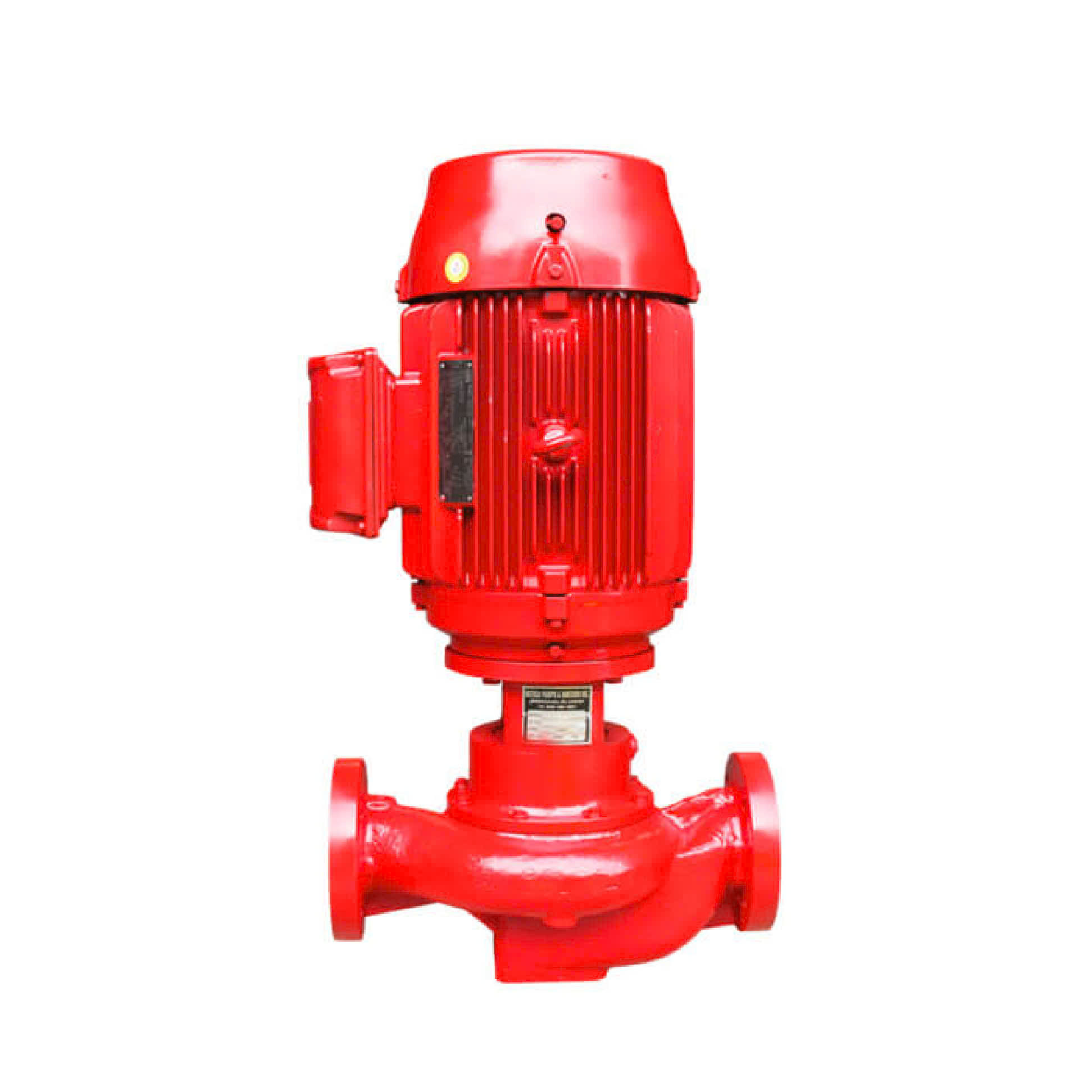

VT Series is In-line centrifugal pump with cast iron hydraulics, available in single or twin versions and with 2 or 4 pole motors. Designed according to DIN24255 / EN733 standards. VT electric pumps are versatile and silent, with a sturdy structure.
VT Series is In-line centrifugal pump with cast iron hydraulics, available in single or twin versions and with 2 or 4 pole motors. Designed according to DIN24255/EN733 and conforms to NFPA20. Moving towards UL Listed and FM Approved. VT electric pumps are versatile and silent, with a sturdy structure.
| Technical data | Material | ||
| Flow rate | : Up to 1500 m³/h | Pump casing | : GG25 / GJS500-7 |
| Total head | : 150 m | Impeller | : GG25 / SS304 / Bronze |
| Max working pressure | : 16 bar | Shaft | : Stainless steel 420 (EN 1.4021) |
| Max. temperature of the liquid | : -10°C ÷ 120°C for standard version 0°C ÷ 75°C for optional version | Mechanical Seal | : Silicon carbide/Carbon/EPDM (std) : Silicon carbide/Carbon/FPM (opt) |
| MEI | : > 0.4 / 0.7 | Motor Adapter | GG25 / GJS500-7 |
| Poles | : 2 and 4 | ||
| Insulation class | : F | ||
| Protection degree | : IP55 | ||
| Voltage | : Three-phase 3~400/690V ±10% |
